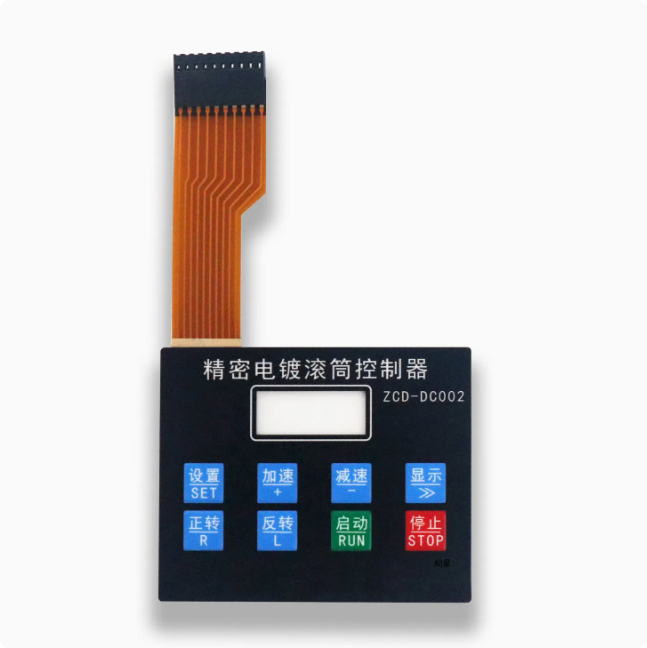

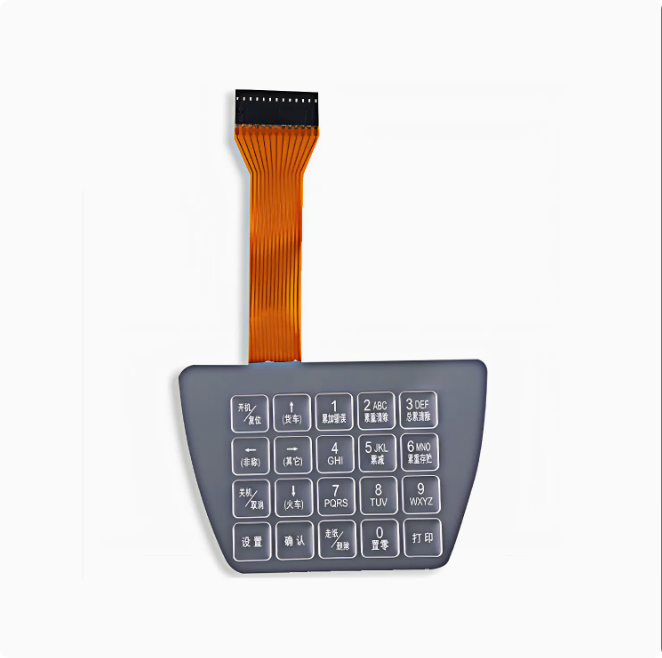

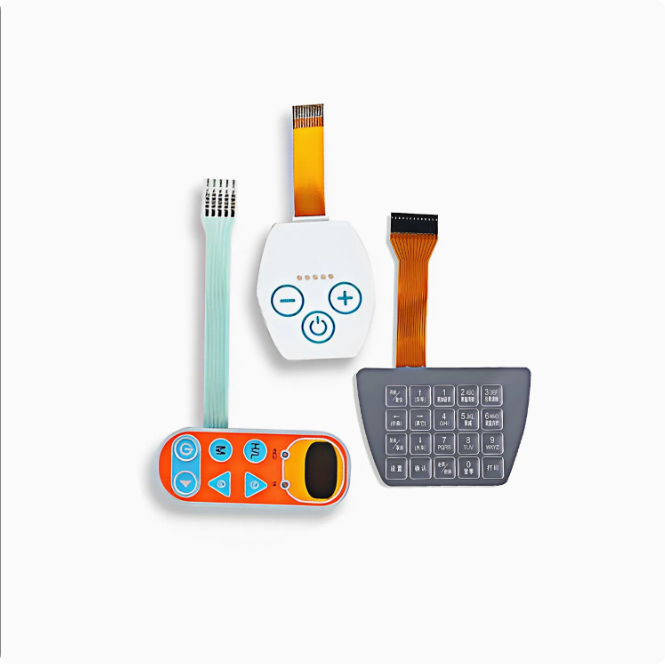

PCB Membrane Keyboard Switch Panel

The membrane switch is an operating system that integrates key functions, indicator components, and instrument panels into one unit. It consists of four parts: the panel, upper circuit, spacer layer, and lower circuit. It functions as a normally open tactile switch, where the upper and lower contacts remain disconnected under normal conditions. When pressed, the upper circuit's contacts deform downward to connect with the lower circuit's conductive pads, completing the circuit. Upon release, the upper contacts rebound, breaking the circuit and triggering a signal. The membrane switch features a compact structure, sleek appearance, and excellent sealing properties, offering advantages such as moisture resistance and long service life. It is widely used in electronic communication, measurement instruments, industrial control, medical equipment, automotive industries, smart toys, household appliances, and other fields.

Send Inquiry

Product Description

1.Customizable: The Deson Acrylic Control Touch Graphic Electronic Circuit Waterproof PCB Membrane Switch Panel offers customizable options in size, shape, and printing to meet the specific needs and preferences of customers.

2.Durable: This membrane switch is known for its scratch-resistant and durable properties, ensuring it can withstand the wear and tear of daily use in various applications, including mechanical equipment.

3.Waterproof and Tactile Feedback: The waterproof feature ensures the membrane switch's reliable operation in wet environments, while the tactile feedback offered by the membrane switch button ensures a responsive and tactile user experience.

4.Environmental Certifications: The product is manufactured with eco-friendly materials, meeting the ISO14001:2015 and ISO9001:2015 environmental certifications, which demonstrates the manufacturer's commitment to sustainable production processes.

5.High-quality Adhesive: The membrane switch panel features 3M9498A/3M467/3M468/3M200 back adhesive, providing secure attachment and optimal performance on various substrates. This high-quality adhesive ensures a long-lasting bond between the membrane switch and its supporting surface, ensuring reliable operation.Company IntroductionDongguan Tiantai Electronics Co., Ltd., a reputable professional manufacturer, excels in the production of high-quality membrane switches, PC\PET panels, flexible circuit boards, aluminum plates, copper panels, dimensional signage, silicone keypads, and silicone gifts. Established in 2003, the company is a subsidiary of the prestigious Tianjin Industry (HK) Co., Ltd. and operates alongside Shenzhen Jingzhicheng Electronics Co., Ltd., also a subsidiary of Tianjin Industry (HK) Co., Ltd. This enables us to produce advanced products like conductive buttons, Zebra stripes, mobile phone sets, and waterproof rings. With a plant area of over 12,000 square meters and a workforce of over 300 employees, our company has grown exponentially since its inception with only 8 employees.

Dongguan Tiantai Electronics Co., Ltd. boasts strong technological capabilities, advanced production equipment, a, and premier customer service, all aimed at fulfilling each customer's unique needs. These efforts have made us a trusted partner for esteemed companies such as LINAK, FLEXTRONICS, LG, CASIO, and EARLY LIGHT. Our mission is to exceed our customers' expectations by providing the highest quality products and services, and our ultimate goal is to create a brilliant future for all stakeholders.

We extend a warm invitation to collaborate with us in this pursuit. Please feel free to contact us for further information. Together, let's forge a prosperous future.FAQ1. who are we?

We are based in Guangdong, China, start from 2010,sell to North America(20.00%),Western Europe(15.00%),Southeast Asia(15.00%),Southern Europe(12.00%),Northern Europe(12.00%),Eastern Europe(10.00%),Oceania(8.00%),Domestic Market(8.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

3.what can you buy from us?

Membrane Switch Keypad, Graphic Overlay, Nameplate, Pressure Sensor, Silicone Keypad And Silicone Products

4. why should you buy from us not from other suppliers?

1.We are CE and RoHS certified manufacturer.

2.Our core competitiveness power is a stable, professional and energetic working team, 80% of them have been working for more than 10 years.

3.High quality, low price, prompt delivery and active response.

5. what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,Express Delivery;

Accepted Payment Currency: USD,EUR,HKD,GBP,CNY;
