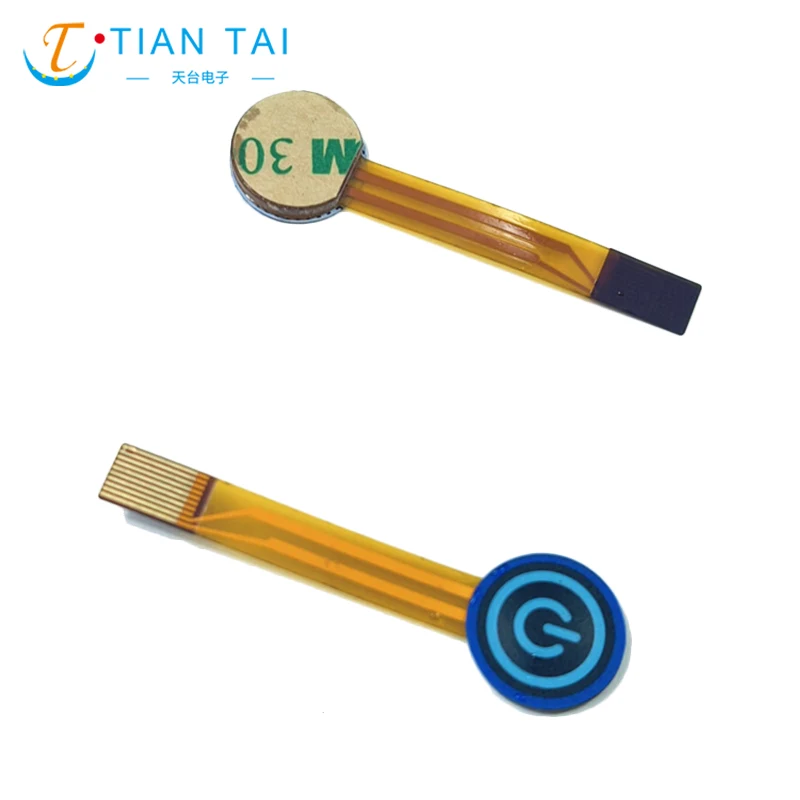

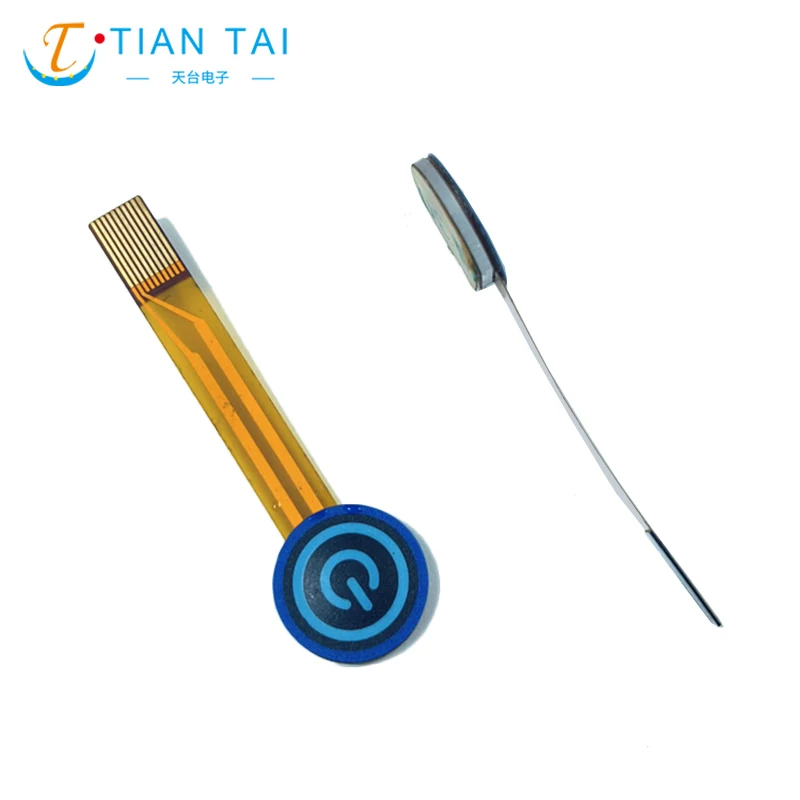

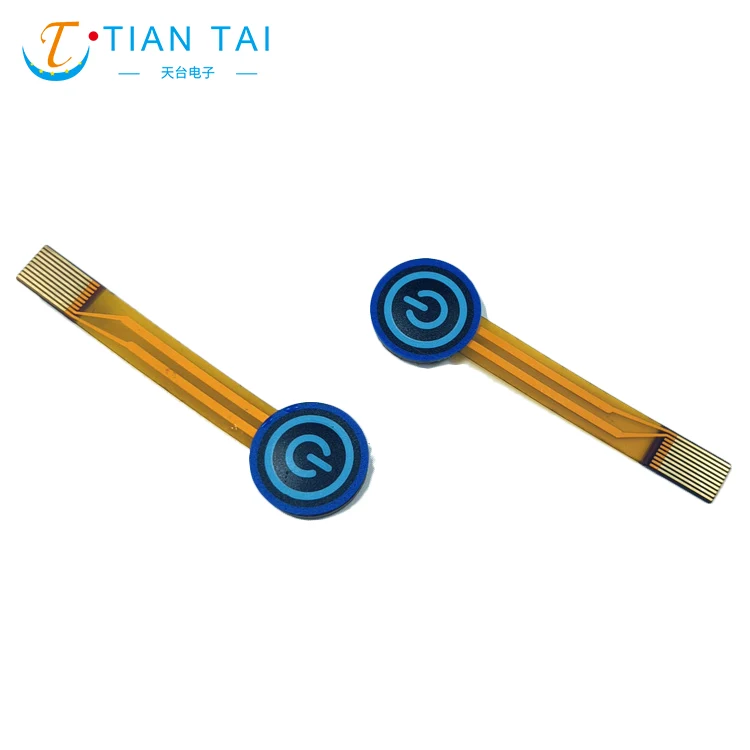

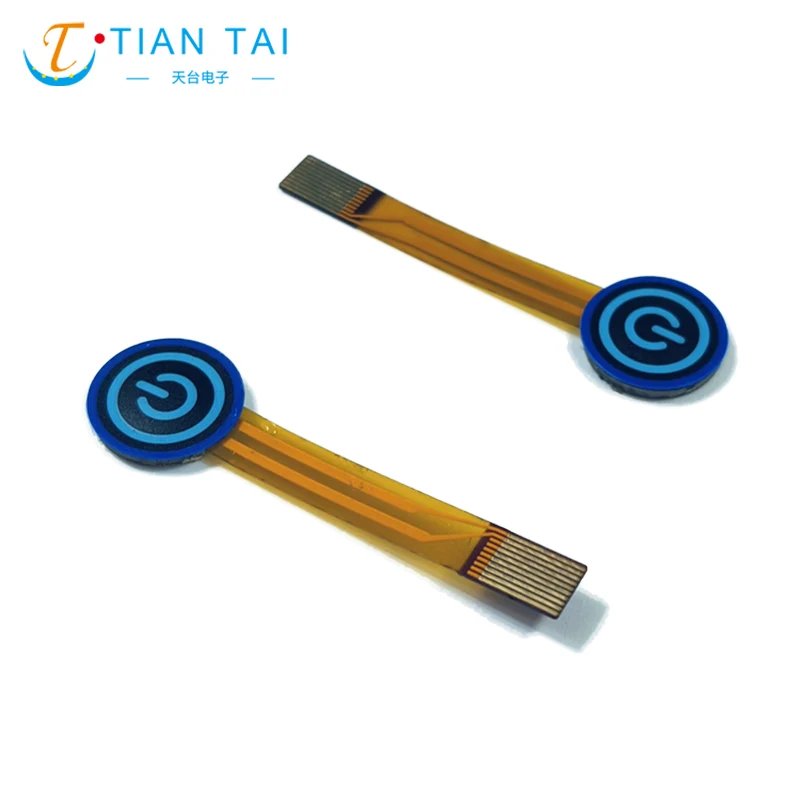

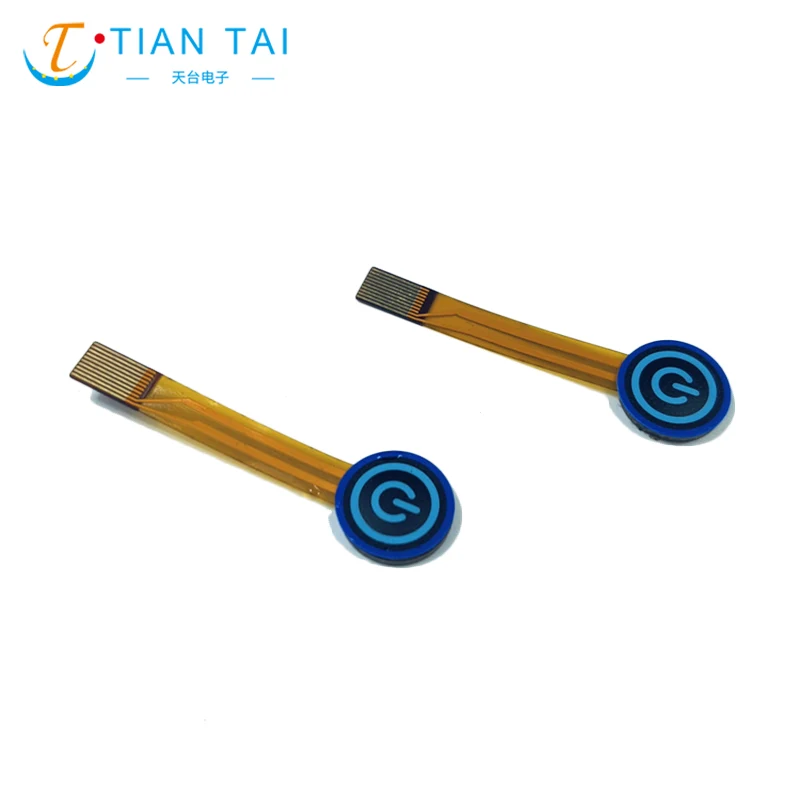

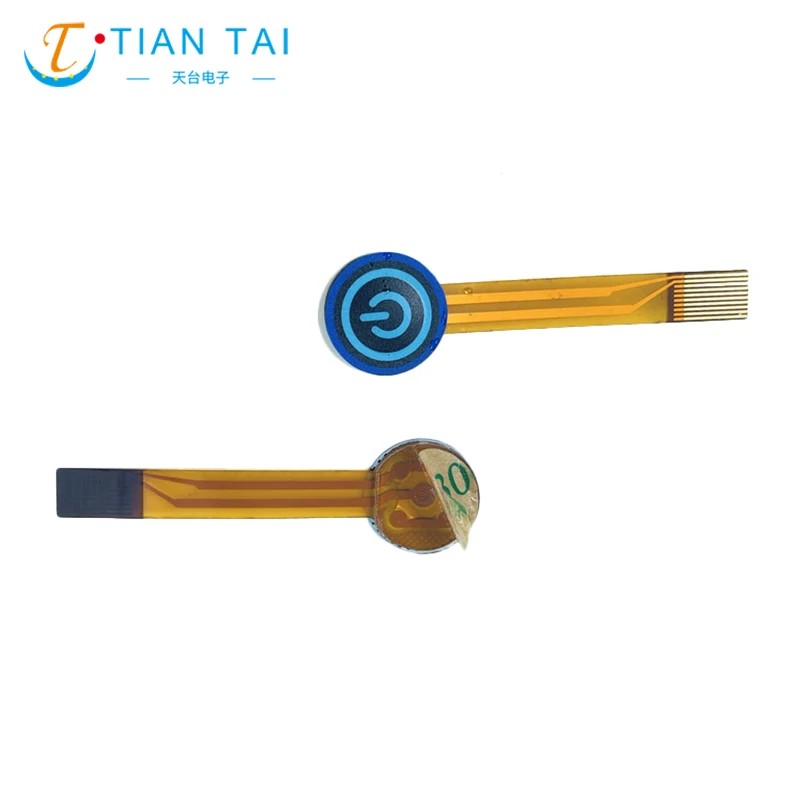

One Key FPC Membrane Switch
Compared with traditional membrane switches by using the PET silver paste printed flex as the circuit layer, the one key FPC membrane switch is made from Polyimide copper etched FPC circuits. Copper flex traces are more durable and stable, which are resistant to high temperatures up to 280°C, the circuit has high precision, output spacing of 0.5mm or others, low electrical resistance value, high conductivity, stable and reliable performance, and one key FPC membrane switch service life longer than normally membrane switch, ability to solder many kinds of components into the switch design.
Send Inquiry
Product Description
One key FPC Membrane Switch design options:
Single-sided – conductive traces one side copper of the film substrate
Double-sided – conductive traces both sides copper of the film substrate
Possible pitch 0.5mm, 1.0mm and 2.54mm for ZIF connector
Plating options can be tin, nickel, or gold
One key FPC membrane switch Specifications:
Electronic characteristics:
Operation Voltage: 35V (DC), 100 MA Operation current: < 100 MA
Contact resistance: 10 Ω ~ 100 Ω (varies according to the length and material of outgoing line)
Open circuit resistance: > 10 Meg Ω
Dielectric withstand voltage: no breakdown or flashover after 250V RMS (50-60Hz 1min) test
Contact jitter time: ≤ 5ms
Life expectancy: life: 5×105 to 3×107 cycles
Touch-type: ≥ 1 million times
One key FPC membrane switch Mechanical properties:
Operating force: plane type 30g ~ 500g
Tactile type: 170-397g (6-14oz)
Switch stroke: plane type 0.1 ~ 0.5mm
Touch-type: 0.6 ~ 1.5mm
Environmental parameters:
Operating temperature: – 35 ℃ ~ + 80 ℃
Convex type: – 20 ℃ ~ + 60 ℃
Storage temperature: plane type (including shrapnel) – 45 ℃ ~ + 90 ℃
Convex type: – 40 ℃ ~ + 60 ℃
Humidity: 40 ℃, 90% – 95%, 240 hours
