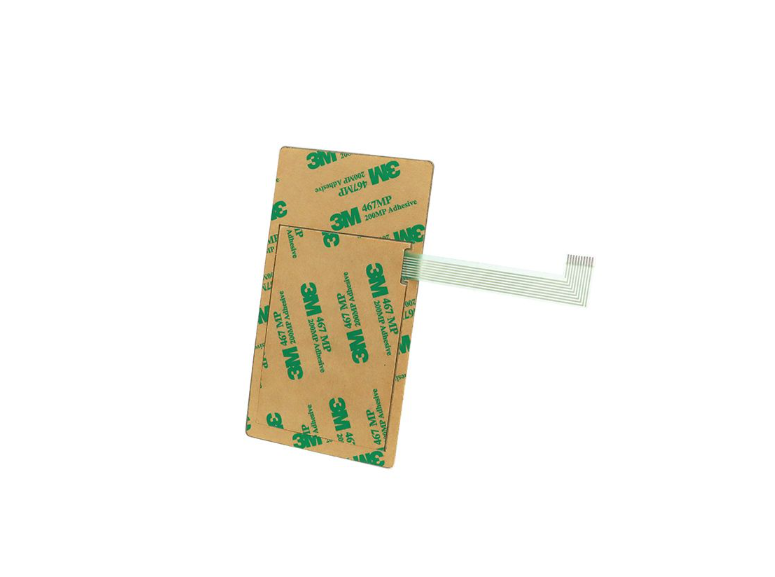

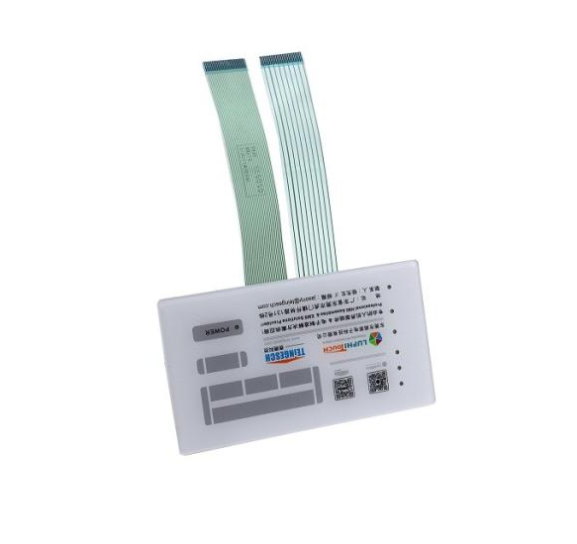

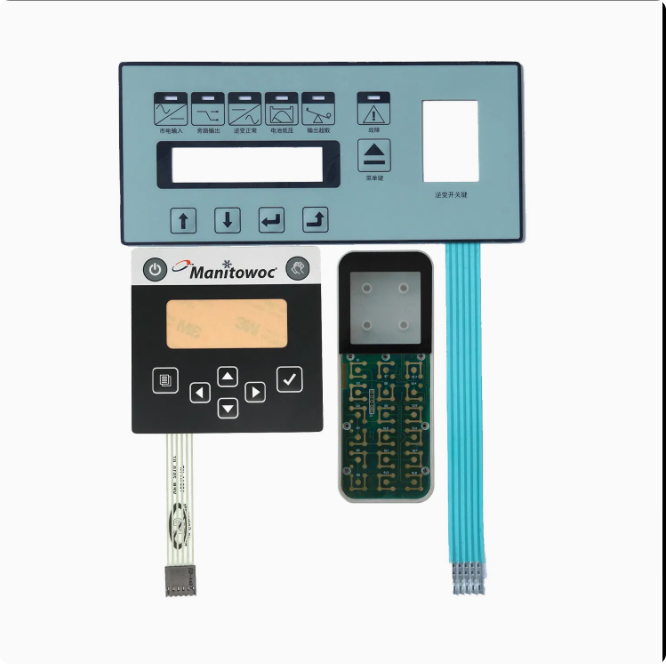

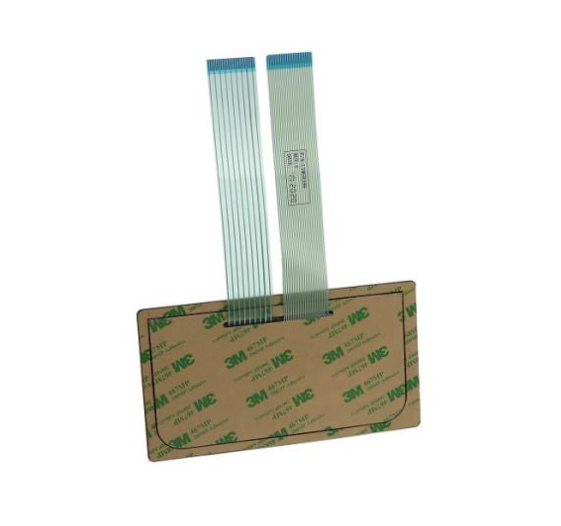

PVC Flexible Membrane Switch

The membrane switch keyboard is a popular subcategory of membrane technology, designed for reliability, cost-effectiveness, and ease of use. Constructed from flexible yet durable polyester and polycarbonate materials, the membrane switch is overlaid with legends and graphics for clear, custom labeling. The core function relies on opening and closing an electrical circuit via layered flexible sheets; when a user presses a key, the circuit is completed momentarily, rapidly registering input and minimizing contact bounce issues seen in older mechanical contacts. This type of keyboard is especially common as membrane keypads in household appliances such as washing machines, microwaves, air conditioners, remote controls, and smart home panels, where moisture and dust resistance are paramount. They are also widely used in point-of-sale (POS) systems, kiosks, copying machines, industrial HMI panels, medical devices, automotive consoles, vending machines, printers, and telecommunications equipment, highlighting their extensive role in both consumer and industrial environments. Critical components of a membrane switch keyboard include several precision-made layers, each serving a dedicated purpose to deliver reliable, long-term performance in high-use environments: Graphic Overlay – This uppermost layer forms the visible user interface and is often coated with durable, UV-resistant graphic inks to prevent fading. It is constructed from flexible polyester or polycarbonate for flexibility and longevity, often featuring customized icons, branding, or backlighting window openings for control panel integration. Domes – Domes are integral to tactile membrane keypads, providing a physical response or ‘snap’ when pressed. Plastic (polyester or polycarbonate) is common for most consumer goods, while metal domes are used for higher precision and longer service life. Dome size, shape (such as four-legged, triangular, round, or oblong), and material directly influence tactility, key travel, and actuation force. Spacer – The spacer maintains circuit separation and defines travel distance for each keystroke. It contains punctured holes (die-cut windows) directly beneath each keypad position to permit contact between the overlay and the conductive circuit layer, preserving the reliability of the switch actuation. Circuit Layer – The circuitry, often produced via screen printing (with silver, carbon, or copper-based conductive inks) or photochemical etching, forms the functional heart of the device. Advanced designs may use printed circuit boards (PCBs) for enhanced complexity and durability, allowing for double-layer or multi-layer circuits to accommodate complex functionalities, such as multi-zone lighting or integrated sensors. Circuit Terminal – A flat ribbon cable or flexible tail connects the membrane keypad to the main controller, ensuring quick and secure integration with embedded systems, PLCs, microcontrollers, or PCBs.

Model:DIY

Send Inquiry

Product Description

1.Customization and Adaptability: Our PVC Flexible Membrane Switch Button Panel features customizable colors to perfectly match your desired aesthetics. It is designed for versatile applications in smart home control panels, electronic scales, home appliances, and more. We offer a variety of surface treatments including silk screen printing, spraying, vacuum coating, and embossing to meet your specific requirements. This flexible design is made with a range of patented PET/PC/PVC films.

2.Durable and Wear-resistant: Our Membrane/Push Button Switch is built to withstand wear and tear, ensuring its functionality and longevity. The robust waterproof adhesive combined with high flexibility makes it suitable for various environments and conditions.

3.Custom Logo and Design: We welcome custom logo designs and accept requests for tailored designs to meet your needs. Our talented team of designers works closely with you to create unique and professional appearances for your product.

4.High-quality Keypad Material: The Membrane Keyboard is crafted from high-quality PET/PC/PVC materials, which are durable, scratch-resistant, and provide excellent tactile feedback. We pride ourselves on using only the finest materials in the production of our Membrane Switches and Panels.

5.Trustworthy Local Manufacturer: With our factory located in Fujian Province, China, we guarantee high-quality products and quick lead times. Our commitment to delivering reliable and efficient service ensures your complete satisfaction with our products. As a local manufacturer, we understand the importance of tailored solutions and work directly with our customers to deliver the best possible outcome.Company IntroductionDongguan Tiantai Electronics Co., Ltd., a prominent producer of membrane switches, PC\PET panels, flexible circuit boards, aluminum and copper plates, dimensional signs, silicone keypads, and silicone gifts, is committed to providing top-notch electronic components and solutions. Established in 2003 and headquartered in Fenggang Town, Dongguan City, Guangdong Province, the company is a subsidiary of Tianjin Industry (HK) Co., Ltd. and operates alongside Shenzhen Jingzhicheng Electronics Co., Ltd., another subsidiary of Tianjin Industry (HK) Co. Ltd. specializing in conductive buttons, Zebra stripes, mobile phone sets, and waterproof rings. With a workforce of over 300 employees, a plant area of over 12,000 square meters, robust technological capabilities, advanced production equipment, and a comprehensive quality management system, Tiantai Electronics endeavors to cater to the diverse needs of its customers. Appreciated by renowned clients such as LINAK, FLEXTRONICS, LG, CASIO, and EARLY LIGHT, the company endeavors to create a bright future by satisfying customer demands and fostering strong partnerships. For further inquiries, please feel free to contact Tiantai Electronics.FAQ1. who are we?

We are based in Guangdong, China, start from 2010,sell to North America(20.00%),Western Europe(15.00%),Southeast Asia(15.00%),Southern Europe(12.00%),Northern Europe(12.00%),Eastern Europe(10.00%),Oceania(8.00%),Domestic Market(8.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

3.what can you buy from us?

Membrane Switch Keypad, Graphic Overlay, Nameplate, Pressure Sensor, Silicone Keypad And Silicone Products

4. why should you buy from us not from other suppliers?

1.We are CE and RoHS certified manufacturer.

2.Our core competitiveness power is a stable, professional and energetic working team, 80% of them have been working for more than 10 years.

3.High quality, low price, prompt delivery and active response.

5. what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,Express Delivery;

Accepted Payment Currency: USD,EUR,HKD,GBP,CNY;
