Gold-Plating Metal Dome Membrane Switch

1. Structure and Components

The gold - plating metal dome membrane switch is composed of several layers. At its core are metal domes, usually made of stainless steel. These domes are small, spring - like structures with a characteristic dome - shaped form. When pressure is applied to the dome, it deflects, making electrical contact and completing a circuit, and then returns to its original position once the pressure is released, providing a reliable tactile feedback mechanism.

The gold - plating layer is applied to the surface of the metal dome then put on the circuit layers of the switch. Gold is a precious metal renowned for its excellent electrical conductivity, high corrosion resistance, and low contact resistance. By plating with gold, the switch can ensure stable electrical performance over a long period, reducing the risk of oxidation and improving the reliability of electrical connections.

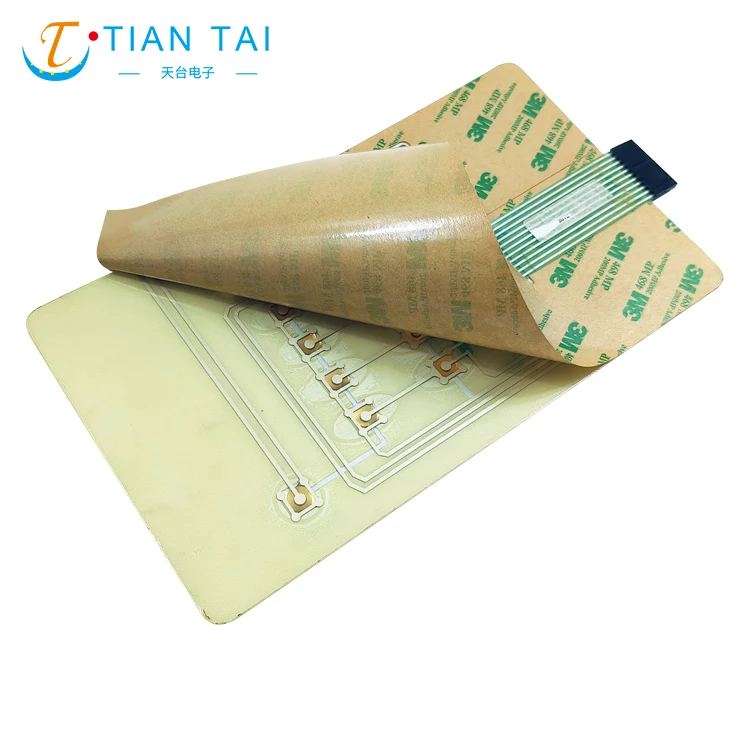

The membrane part of the switch is often made of flexible materials such as polyester (PET). It serves as a protective cover and a substrate for the metal domes and conductive circuits. The membrane can be printed with various graphics, symbols, or legends to indicate the function of each switch position, making it user - friendly.

2. Working Principle

The working principle of the gold - plating metal dome membrane switch is relatively straightforward. When a user presses the switch area on the membrane, the force is transmitted to the metal dome beneath. As the dome is depressed, it comes into contact with the underlying conductive layer, closing the electrical circuit. This change in electrical state can be detected by the connected electronic device, triggering a specific function, such as turning on a device, changing a setting, or entering a command. Once the user releases the pressure, the elastic force of the metal dome causes it to rebound, breaking the electrical contact and resetting the circuit.

3. Advantages of gold - plating metal dome membrane switch

- High Reliability: Thanks to the gold - plating, which resists corrosion and oxidation, the switch can maintain stable electrical performance in various environments, reducing the probability of malfunctions due to poor electrical connections.

- Long Service Life: The metal domes are designed to withstand a large number of press - release cycles, typically ranging from hundreds of thousands to millions of times, ensuring the long - term usability of the switch.

- Good Tactile Feedback: The distinct tactile feel provided by the metal domes when pressed and released gives users clear feedback, improving the user experience, especially in applications where quick and accurate operation is required.

- Design Flexibility: The membrane can be customized in terms of shape, size, and the layout of switch positions. It can also be integrated with other components such as LED backlights, making it suitable for a wide range of product designs.

4. Applications of gold - plating metal dome membrane switch

Gold - plating metal dome membrane switches find applications in numerous fields. In consumer electronics, they are commonly used in mobile phones, tablets, remote controls, and keyboards. In industrial control panels, they offer a reliable and durable switching solution for operating machinery and equipment. In automotive interiors, they can be found in dashboards, controlling functions like lighting, air - conditioning, and audio systems.

In conclusion, the gold - plating metal dome membrane switch, with its unique structure, working principle, and a host of advantages, plays an essential role in modern electronics, enabling the smooth operation of a vast array of devices.”
